Model : HGR-76
Dimension : 1200x700x980mm
Heat Flux : 27kw/h
Net Weight : 65kgs
Gross Weight : 75kgs
Cooking range, Gas range with gas oven, 6 burner gas range with gas oven:
700 series and 900 series cooking range is comprised of over 60 models designed to guarantee the highest level of performance, reliability, energy saving, safety standards and ergonomic operation. Advanced technology can satify the needs of the professional caterer.
1. Constructed in stainless steel with new commercial open burners.
2. Ovens made of stainless steel, with cast iron lame difussor for better heat distribution, and high efficiency burner.
3. Fat collectors for open burners, made of stainless steel.
4. Accidental flameout protection device system that ensures that gas is fed to the burner only when there is a flame present, thereby avoiding gas leaks.
5. Use of pilot flames for igniting burners.
6. Piezoelectric ignition.
7. Electric models and gas models are available.
Model: HGR-76
Name: 6-Burner Gas Range with Cabinet
Dimension: 1200x700x980mm
Heat Flux: 27kw/h
Model : HGR-76
Dimension : 1200x700x980mm
Heat Flux : 27kw/h
Net Weight : 65kgs
Gross Weight : 75kgs
Cooking range, Gas range with gas oven, 6 burner gas range with gas oven:
700 series and 900 series cooking range is comprised of over 60 models designed to guarantee the highest level of performance, reliability, energy saving, safety standards and ergonomic operation. Advanced technology can satify the needs of the professional caterer.
1. Constructed in stainless steel with new commercial open burners.
2. Ovens made of stainless steel, with cast iron lame difussor for better heat distribution, and high efficiency burner.
3. Fat collectors for open burners, made of stainless steel.
4. Accidental flameout protection device system that ensures that gas is fed to the burner only when there is a flame present, thereby avoiding gas leaks.
5. Use of pilot flames for igniting burners.
6. Piezoelectric ignition.
7. Electric models and gas models are available.
Model: HGR-76
Name: 6-Burner Gas Range with Cabinet
Dimension: 1200x700x980mm
Heat Flux: 27kw/h
Item No. | Description | product dimension(mm) | carton dimension(mm) | packing dimension(mm) | heat flux(kw/h) | power(kw) | voltage/ frequency(v/Hz) | volume(CBM) | net weight(KGS) | gross weight(KGS) |
HGR-74G | 4-burner gas range with gas oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 23 | _ | _ | 0.84 | 80 | 89 |
HGR-94G | 4-burner gas range with gas oven | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 23 | _ | _ | 1.03 | 165 | 185 |

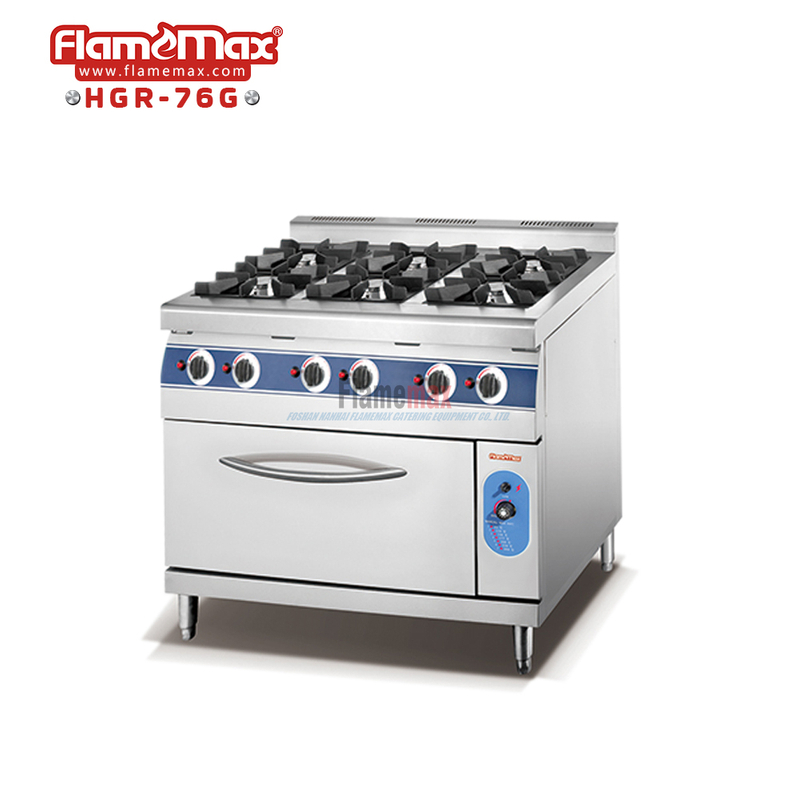

HGR-76G | 6-burner gas range with gas oven | 1200× 700× 980 | 1240× 760× 1000 | 1320× 840× 1080 | 33 | _ | _ | 1.20 | 110 | 130 |
HGR-96G | 6-burner gas range with gas oven | 1200× 900× 980 | 1240× 960× 1000 | 1320× 1040× 1080 | 33 | _ | _ | 1.48 | 210 | 235 |
HGR-74E | 4-burner gas range with electric oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 18 | 4.8 | 380/220/50 | 0.84 | 78 | 88 |
HGR-94E | 4-burner gas range with electric oven | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 18 | 4.8 | 380/220/50 | 1.03 | 160 | 180 |
HGR-76E | 6-burner gas range with electric oven | 1200× 700× 980 | 1240× 760× 1000 | 1320× 840× 1080 | 27 | 6.05 | 380/220/50 | 1.20 | 105 | 125 |
HGR-96E | 6-burner gas range with electric oven | 1200× 900× 980 | 1240× 960× 1000 | 1320× 1040× 1080 | 27 | 6.05 | 380/220/50 | 1.48 | 205 | 230 |
HGR-76 | 6-burner gas range with cabinet | 1200× 700× 980 | 1240× 760× 1000 | 1320× 840× 1080 | 27 | _ | _ | 1.20 | 65 | 75 |
HGR-96 | 6-burner gas range with cabinet | 1200× 900× 980 | 1240× 960× 1000 | 1320× 1040× 1080 | 27 | _ | _ | 1.48 | 75 | 85 |
HGR-74 | 4-burner gas range with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 18 | _ | _ | 0.84 | 48 | 58 |
HGR-94 | 4-burner gas range with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 18 | _ | _ | 1.03 | 55 | 68 |
HGR-704G | 4-burner gas range with gas griddle & gas oven | 1200× 700× 980 | 1240× 760× 1000 | 1320× 840× 1080 | 28.5 | _ | _ | 1.20 | 123 | 150 |
HGR-904G | 4-burner gas range with gas griddle & gas oven | 1200× 900× 980 | 1240× 960× 1000 | 1320× 1040× 1080 | 28.5 | _ | _ | 1.48 | 210 | 235 |
HGR-702G | 2-burner gas range with gas griddle & gas oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 16 | _ | _ | 0.84 | 120 | 110 |
HGR-902G | 2-burner gas range with gas griddle & gas oven | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 16 | _ | _ | 1.03 | 140 | 160 |
Item No. | Description | product dimension(mm) | carton dimension(mm) | packing dimension(mm) | heat flux(kw/h) | power(kw) | voltage/ frequency(v/Hz) | volume(CBM) | net weight(KGS) | gross weight(KGS) |
HGR-74G | 4-burner gas range with gas oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 23 | _ | _ | 0.84 | 80 | 89 |
HGR-94G | 4-burner gas range with gas oven | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 23 | _ | _ | 1.03 | 165 | 185 |
HGR-76G | 6-burner gas range with gas oven | 1200× 700× 980 | 1240× 760× 1000 | 1320× 840× 1080 | 33 | _ | _ | 1.20 | 110 | 130 |
HGR-96G | 6-burner gas range with gas oven | 1200× 900× 980 | 1240× 960× 1000 | 1320× 1040× 1080 | 33 | _ | _ | 1.48 | 210 | 235 |
HGR-74E | 4-burner gas range with electric oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 18 | 4.8 | 380/220/50 | 0.84 | 78 | 88 |
HGR-94E | 4-burner gas range with electric oven | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 18 | 4.8 | 380/220/50 | 1.03 | 160 | 180 |
HGR-76E | 6-burner gas range with electric oven | 1200× 700× 980 | 1240× 760× 1000 | 1320× 840× 1080 | 27 | 6.05 | 380/220/50 | 1.20 | 105 | 125 |
HGR-96E | 6-burner gas range with electric oven | 1200× 900× 980 | 1240× 960× 1000 | 1320× 1040× 1080 | 27 | 6.05 | 380/220/50 | 1.48 | 205 | 230 |
HGR-76 | 6-burner gas range with cabinet | 1200× 700× 980 | 1240× 760× 1000 | 1320× 840× 1080 | 27 | _ | _ | 1.20 | 65 | 75 |
HGR-96 | 6-burner gas range with cabinet | 1200× 900× 980 | 1240× 960× 1000 | 1320× 1040× 1080 | 27 | _ | _ | 1.48 | 75 | 85 |
HGR-74 | 4-burner gas range with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 18 | _ | _ | 0.84 | 48 | 58 |
HGR-94 | 4-burner gas range with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 18 | _ | _ | 1.03 | 55 | 68 |
HGR-704G | 4-burner gas range with gas griddle & gas oven | 1200× 700× 980 | 1240× 760× 1000 | 1320× 840× 1080 | 28.5 | _ | _ | 1.20 | 123 | 150 |
HGR-904G | 4-burner gas range with gas griddle & gas oven | 1200× 900× 980 | 1240× 960× 1000 | 1320× 1040× 1080 | 28.5 | _ | _ | 1.48 | 210 | 235 |
HGR-702G | 2-burner gas range with gas griddle & gas oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 16 | _ | _ | 0.84 | 120 | 110 |
HGR-902G | 2-burner gas range with gas griddle & gas oven | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 16 | _ | _ | 1.03 | 140 | 160 |
