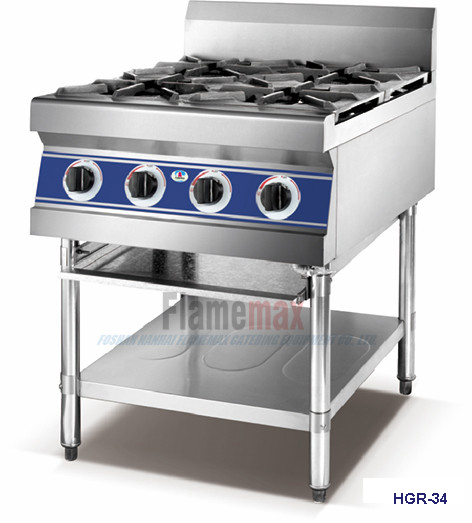

Model : Hgr-34 Dimension : 610x700x920mm Heat Flux : 16kw/H Net Weight : 85kgs Gross Weight : 90kgs Bruner : 8 Gas stove, gas range, cooking range 1. Durable stainless steel construction. 2. Easy to clean, hygienic body, ergonomically design. 3. Unit enables to obtain the maximum efficiency with minimum energy consumption. 4. Heavy duty cast iron. 6. Designed for using large stockpots. 7. High efficiency casting iron, gas burners and high quality gas valves provides power and safety. 8. With big size garbage collection plate. Model: HGR-38 Name: 8-burner stove Dimension: 1100x700x920mm Heat Flux: 32kw/h Model: HGR-902 Name: 2-burner gas range with gas griddle Dimension: 800x900x410mm Heat Flux: 12kw/h Model: HGR-6 Name: 6-burner gas range Dimension: 1200x900x350mm Heat Flux: 24kw/h Model: HGR-22 Name: 2-burner heavy duty gas range Dimension: 310x770x420mm Heat Flux: 8kw/h Feature of HGR-22 gas range 1. With electronic ignition. 2. Equip with flame failure device.
Model : Hgr-34 Dimension : 610x700x920mm Heat Flux : 16kw/H Net Weight : 85kgs Gross Weight : 90kgs Bruner : 8 Gas stove, gas range, cooking range 1. Durable stainless steel construction. 2. Easy to clean, hygienic body, ergonomically design. 3. Unit enables to obtain the maximum efficiency with minimum energy consumption. 4. Heavy duty cast iron. 6. Designed for using large stockpots. 7. High efficiency casting iron, gas burners and high quality gas valves provides power and safety. 8. With big size garbage collection plate. Model: HGR-38 Name: 8-burner stove Dimension: 1100x700x920mm Heat Flux: 32kw/h Model: HGR-902 Name: 2-burner gas range with gas griddle Dimension: 800x900x410mm Heat Flux: 12kw/h Model: HGR-6 Name: 6-burner gas range Dimension: 1200x900x350mm Heat Flux: 24kw/h Model: HGR-22 Name: 2-burner heavy duty gas range Dimension: 310x770x420mm Heat Flux: 8kw/h Feature of HGR-22 gas range 1. With electronic ignition. 2. Equip with flame failure device.
Item No.
Description
product dimension(MM)
carton dimension(MM)
packing dimension(MM)
heat flux (KW/H)
volume (CBM)
net weight (KGS)
gross weight (KGS)
HGR-4
4-burner gas range
800× 900× 350
840× 740× 360
920× 820× 440
16
0.33
51
62
HGR-6
6-burner gas range
1200× 900× 350
1240× 760× 360
1320× 820× 440
24
0.48
67
77
HGR-920
2-burner gas range
400× 700× 350
440× 760× 420
440× 760× 420
9
0.14
30
40
HGR-940
4-burner gas range
800× 900× 350
840× 940× 450
920× 1020× 530
18
0.5
60
70
HGR-960
6-burner gas range
1200× 900× 350
1240× 940× 450
1320× 1020× 530
27
0.71
75
85
HGR-902
2-burner gas range with gas griddle
800× 900× 410
850× 1000× 450
930× 1080× 530
12
0.53
60
70
HGR-904
4-burner gas range with gas griddle
1200× 900× 410
1240x940x450
1320x1020x530
22
0.71
80
95
HGR-34
4-burner stove
610× 700× 920
650× 760× 500
730× 840× 580
16
0.36
45
50
HGR-36
6-burner stove
910× 700× 920
950× 760× 500
1030× 840× 580
24
0.5
65
70
HGR-38
8-burner stove
1100× 700× 920
1250× 760× 500
1330× 840× 580
32
0.65
85
90
Item No.
Description
product dimension(MM)
carton dimension(MM)
packing dimension(MM)
heat flux (KW/H)
volume (CBM)
net weight (KGS)
gross weight (KGS)
HGR-4
4-burner gas range
800× 900× 350
840× 740× 360
920× 820× 440
16
0.33
51
62
HGR-6
6-burner gas range
1200× 900× 350
1240× 760× 360
1320× 820× 440
24
0.48
67
77
HGR-920
2-burner gas range
400× 700× 350
440× 760× 420
440× 760× 420
9
0.14
30
40
HGR-940
4-burner gas range
800× 900× 350
840× 940× 450
920× 1020× 530
18
0.5
60
70
HGR-960
6-burner gas range
1200× 900× 350
1240× 940× 450
1320× 1020× 530
27
0.71
75
85
HGR-902
2-burner gas range with gas griddle
800× 900× 410
850× 1000× 450
930× 1080× 530
12
0.53
60
70
HGR-904
4-burner gas range with gas griddle
1200× 900× 410
1240x940x450
1320x1020x530
22
0.71
80
95
HGR-34
4-burner stove
610× 700× 920
650× 760× 500
730× 840× 580
16
0.36
45
50
HGR-36
6-burner stove
910× 700× 920
950× 760× 500
1030× 840× 580
24
0.5
65
70
HGR-38
8-burner stove
1100× 700× 920
1250× 760× 500
1330× 840× 580
32
0.65
85
90
