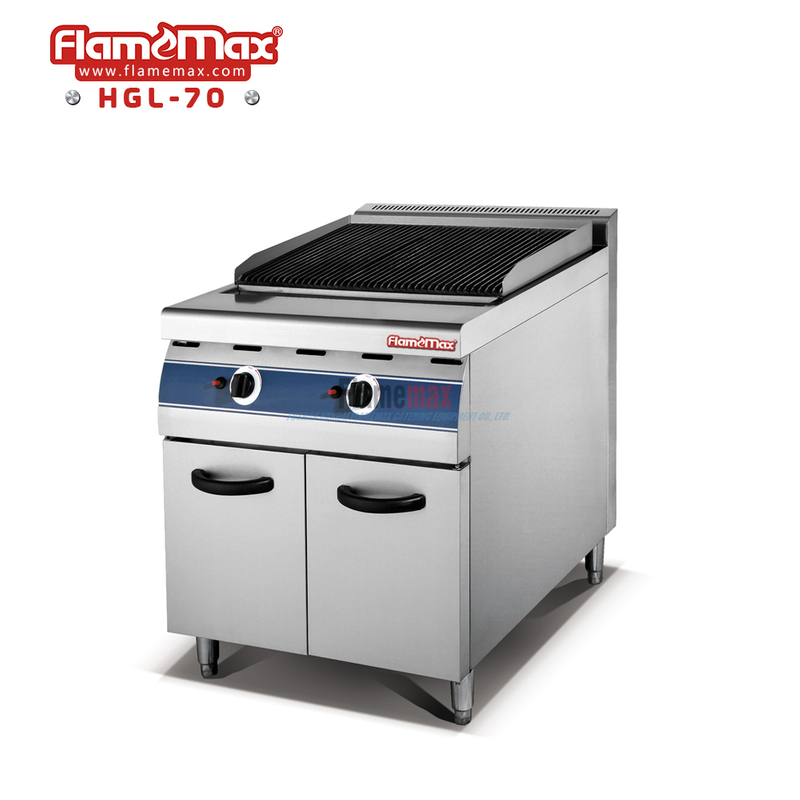

Model : HGL-70
Dimension : 800x700x980mm
Heat Flux : 12kw
Net Weight : 98kgs
Gross Weight : 105kgs
Material : Stainless Steel #430
Cooking range, electric lava rock girll, grill, lava rock grill with cabinet
700 series and 900 series cooking range is comprised of over 60 models designed to guarantee the highest level of performance, reliability, energy saving, safety standards and ergonomic operation. Advanced technology can satify the needs of the professional caterer.
1. Constructed in stainless steel with new commercial open burners.
2. Ovens made of stainless steel, with cast iron lame difussor for better heat distribution, and high efficiency burner.
3. Fat collectors for open burners, made of stainless steel.
4. Accidental flameout protection device system that ensures that gas is fed to the burner only when there is a flame present, thereby avoiding gas leaks.
5. Use of pilot flames for igniting burners.
6. Piezoelectric ignition.
7. Electric models and gas models are available.
Model: HEL-90
Name: Electric lava rock grill with cabinet
Dimension: 800x900x980mm
Power: 12kw 380V/50Hz
Feature of HSQ, HRQ electric cooker serise:
1. No flame.
2. Top heaters can be operated separately by graded switches.
3. Plates are heated rapidly and desired cooking level is easily reached.
Model: HSQ-96E
Name: 6-plate electric cooker with electric oven(square)
Dimension: 1200x900x980mm
Power: 27kw 380V/50Hz
Model: HEG-7A
Name: Electric griddle with cabinet
Dimension: 400x700x980mm
Power: 4.5kw 220V/50Hz
Feature of HGF-70/90/70A/90A fryers series:
1. Automatically control temperature.
2. Flameout protect device.
3. Anti-high temperature oil valve.
4. Machine all use gas, no longer need to search for electric power.
Model: HGF-70
Name: 2-tank 4-basket gas fryer with cabinet
Dimension: 800x700x980mm
Capacity: 28+28liters
Heat Flux: 33kw/h
Feature of HEF-70/90/70A/90A fryers series:
1. Easy to clean by the help of tiltable heating element.
2. High efficiency heating device.
3. High quality thermostat control.
4. Overheat protection.
Model: HEF-70
Name: 2-tank 4-basket gas fryer with cabinet
Dimension: 800x700x980mm
Capacity: 28+28liters
Power: 9+9kw 380V/50Hz
Model: HGR-76G
Name: 6-burner gas range with gas oven
Dimension: 1200x700x980mm
Heat Flux: 33kw/h
Model : HGL-70
Dimension : 800x700x980mm
Heat Flux : 12kw
Net Weight : 98kgs
Gross Weight : 105kgs
Material : Stainless Steel #430
Cooking range, electric lava rock girll, grill, lava rock grill with cabinet
700 series and 900 series cooking range is comprised of over 60 models designed to guarantee the highest level of performance, reliability, energy saving, safety standards and ergonomic operation. Advanced technology can satify the needs of the professional caterer.
1. Constructed in stainless steel with new commercial open burners.
2. Ovens made of stainless steel, with cast iron lame difussor for better heat distribution, and high efficiency burner.
3. Fat collectors for open burners, made of stainless steel.
4. Accidental flameout protection device system that ensures that gas is fed to the burner only when there is a flame present, thereby avoiding gas leaks.
5. Use of pilot flames for igniting burners.
6. Piezoelectric ignition.
7. Electric models and gas models are available.
Model: HEL-90
Name: Electric lava rock grill with cabinet
Dimension: 800x900x980mm
Power: 12kw 380V/50Hz
Feature of HSQ, HRQ electric cooker serise:
1. No flame.
2. Top heaters can be operated separately by graded switches.
3. Plates are heated rapidly and desired cooking level is easily reached.
Model: HSQ-96E
Name: 6-plate electric cooker with electric oven(square)
Dimension: 1200x900x980mm
Power: 27kw 380V/50Hz
Model: HEG-7A
Name: Electric griddle with cabinet
Dimension: 400x700x980mm
Power: 4.5kw 220V/50Hz
Feature of HGF-70/90/70A/90A fryers series:
1. Automatically control temperature.
2. Flameout protect device.
3. Anti-high temperature oil valve.
4. Machine all use gas, no longer need to search for electric power.
Model: HGF-70
Name: 2-tank 4-basket gas fryer with cabinet
Dimension: 800x700x980mm
Capacity: 28+28liters
Heat Flux: 33kw/h
Feature of HEF-70/90/70A/90A fryers series:
1. Easy to clean by the help of tiltable heating element.
2. High efficiency heating device.
3. High quality thermostat control.
4. Overheat protection.
Model: HEF-70
Name: 2-tank 4-basket gas fryer with cabinet
Dimension: 800x700x980mm
Capacity: 28+28liters
Power: 9+9kw 380V/50Hz
Model: HGR-76G
Name: 6-burner gas range with gas oven
Dimension: 1200x700x980mm
Heat Flux: 33kw/h
Item No. | Description | product dimension(mm) | carton dimension(mm) | packing dimension(mm) | heat flux(kw/h) | power(kw) | voltage/ frequency(v/Hz) | volume(CBM) | net weight(KGS) | gross weight(KGS) |
HRQ-74 | 4-burner electric hot plate with cabinet (round) | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 7.2 | 380/50 | 0.84 | 98 | 105 |
HRQ-94 | 4-burner electric hot plate with cabinet (round) | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 8 | 380/50 | 1.03 | 105 | 115 |
HRQ-74E | 4-burner electric hot plate with electric oven (round) | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 12 | 380/50 | 0.84 | 98 | 105 |
HRQ-94E | 4-burner electric hot plate with electric oven (round) | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 12.8 | 380/50 | 1.03 | 105 | 115 |
HIC-74 | 4-plate commercial induction cooker with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 8 | 380/50 | 0.84 | 60 | 70 |
HIC-74E | 4-plate commercial induction cooker with electric oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 12 | 380/50 | 0.84 | 100 | 110 |
HIC-94E | 4-plate commercial induction cooker with electric oven | 800× 900× 980 | 840x940x1020 | 920x1020x1100 | _ | _ | _ | 1.03 | 120 | 130 |
HGZ-70 | gas french hot-plate cooker with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 6 | _ | _ | 0.84 | 120 | 140 |
HGZ-90 | gas french hot-plate cooker with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 9 | _ | _ | 1.03 | 120 | 140 |
HGZ-70G | gas french hot-plate cooker with gas oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 11 | _ | _ | 0.84 | 160 | 180 |
HGZ-90G | gas french hot-plate cooker with gas oven | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 14 | _ | _ | 1.03 | 160 | 180 |
HGL-70 | gas lava rock broiler with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 16 | _ | _ | 0.84 | 98 | 105 |
HGL-90 | gas lava rock broiler with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 16 | _ | _ | 1.03 | 105 | 115 |
HEL-70 | electric lava rock broiler cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 9 | 380/50 | 0.84 | 98 | 105 |
HEL-90 | electric lava rock broiler cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 12 | 380/50 | 1.03 | 120 | 135 |
HGB-70 | gas bain marier with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 6 | _ | _ | 0.84 | 70 | 90 |
HGB-90 | gas bain marier with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 6 | _ | _ | 1.03 | 100 | 120 |
HEB-70 | electric bain marie with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 3 | 220/50 | 0.84 | 60 | 80 |
HEB-90 | electric bain marie with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 3 | 220/50 | 1.03 | 90 | 110 |
HGN-70 | gas noodle cooker with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 12 | _ | _ | 0.84 | 70 | 90 |
HGN-90 | gas noodle cooker with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 16 | _ | _ | 1.03 | 100 | 120 |
HEN-70 | electric noodle cooker with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 9 | 380/50 | 0.84 | 60 | 80 |
HEN-90 | electric noodle cooker with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 12 | 380/50 | 1.03 | 90 | 110 |
HGR-4G | 4-burner gas range with gas oven | 750× 670× 1100 | 790× 670× 850 | 870× 750× 930 | 16 | 0.02 | 220/50 | 0.61 | 64 | 72 |
HGR-4E | 4-burner gas range with electric oven | 750× 670× 1100 | 790× 670× 850 | 870× 750× 930 | 12 | 3.2 | 380/50 | 0.61 | 64 | 72 |
HGR-6G | 6-burner gas range with gas oven | 850× 670× 1100 | 890× 670× 850 | 970× 750× 930 | 24 | 0.02 | 220/50 | 0.68 | 75 | 84 |
HGR-6E | 6-burner gas range with electric oven | 850× 670× 1100 | 890× 670× 850 | 970× 750× 930 | 18 | 4 | 380/50 | 0.68 | 75 | 84 |
HRQ-4E | 4-plate electric range with electric oven | 750× 670× 1100 | 790× 650× 850 | 870× 730× 930 | 9.2 | 380/50 | 0.6 | 64 | 72 | |
HRQ-6E | 6-plate electric range with electric oven | 850× 670× 1100 | 890× 650× 850 | 970× 730× 930 | _ | 13 | 380/50 | 0.66 | 80 | 90 |
Item No. | Description | product dimension(mm) | carton dimension(mm) | packing dimension(mm) | heat flux(kw/h) | power(kw) | voltage/ frequency(v/Hz) | volume(CBM) | net weight(KGS) | gross weight(KGS) |
HRQ-74 | 4-burner electric hot plate with cabinet (round) | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 7.2 | 380/50 | 0.84 | 98 | 105 |
HRQ-94 | 4-burner electric hot plate with cabinet (round) | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 8 | 380/50 | 1.03 | 105 | 115 |
HRQ-74E | 4-burner electric hot plate with electric oven (round) | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 12 | 380/50 | 0.84 | 98 | 105 |
HRQ-94E | 4-burner electric hot plate with electric oven (round) | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 12.8 | 380/50 | 1.03 | 105 | 115 |
HIC-74 | 4-plate commercial induction cooker with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 8 | 380/50 | 0.84 | 60 | 70 |
HIC-74E | 4-plate commercial induction cooker with electric oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 12 | 380/50 | 0.84 | 100 | 110 |
HIC-94E | 4-plate commercial induction cooker with electric oven | 800× 900× 980 | 840x940x1020 | 920x1020x1100 | _ | _ | _ | 1.03 | 120 | 130 |
HGZ-70 | gas french hot-plate cooker with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 6 | _ | _ | 0.84 | 120 | 140 |
HGZ-90 | gas french hot-plate cooker with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 9 | _ | _ | 1.03 | 120 | 140 |
HGZ-70G | gas french hot-plate cooker with gas oven | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 11 | _ | _ | 0.84 | 160 | 180 |
HGZ-90G | gas french hot-plate cooker with gas oven | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 14 | _ | _ | 1.03 | 160 | 180 |
HGL-70 | gas lava rock broiler with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 16 | _ | _ | 0.84 | 98 | 105 |
HGL-90 | gas lava rock broiler with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 16 | _ | _ | 1.03 | 105 | 115 |
HEL-70 | electric lava rock broiler cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 9 | 380/50 | 0.84 | 98 | 105 |
HEL-90 | electric lava rock broiler cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 12 | 380/50 | 1.03 | 120 | 135 |
HGB-70 | gas bain marier with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 6 | _ | _ | 0.84 | 70 | 90 |
HGB-90 | gas bain marier with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 6 | _ | _ | 1.03 | 100 | 120 |
HEB-70 | electric bain marie with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 3 | 220/50 | 0.84 | 60 | 80 |
HEB-90 | electric bain marie with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 3 | 220/50 | 1.03 | 90 | 110 |
HGN-70 | gas noodle cooker with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | 12 | _ | _ | 0.84 | 70 | 90 |
HGN-90 | gas noodle cooker with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | 16 | _ | _ | 1.03 | 100 | 120 |
HEN-70 | electric noodle cooker with cabinet | 800× 700× 980 | 840× 760× 1000 | 920× 840× 1080 | _ | 9 | 380/50 | 0.84 | 60 | 80 |
HEN-90 | electric noodle cooker with cabinet | 800× 900× 980 | 840× 960× 1000 | 920× 1040× 1080 | _ | 12 | 380/50 | 1.03 | 90 | 110 |
HGR-4G | 4-burner gas range with gas oven | 750× 670× 1100 | 790× 670× 850 | 870× 750× 930 | 16 | 0.02 | 220/50 | 0.61 | 64 | 72 |
HGR-4E | 4-burner gas range with electric oven | 750× 670× 1100 | 790× 670× 850 | 870× 750× 930 | 12 | 3.2 | 380/50 | 0.61 | 64 | 72 |
HGR-6G | 6-burner gas range with gas oven | 850× 670× 1100 | 890× 670× 850 | 970× 750× 930 | 24 | 0.02 | 220/50 | 0.68 | 75 | 84 |
HGR-6E | 6-burner gas range with electric oven | 850× 670× 1100 | 890× 670× 850 | 970× 750× 930 | 18 | 4 | 380/50 | 0.68 | 75 | 84 |
HRQ-4E | 4-plate electric range with electric oven | 750× 670× 1100 | 790× 650× 850 | 870× 730× 930 | 9.2 | 380/50 | 0.6 | 64 | 72 | |
HRQ-6E | 6-plate electric range with electric oven | 850× 670× 1100 | 890× 650× 850 | 970× 730× 930 | _ | 13 | 380/50 | 0.66 | 80 | 90 |
