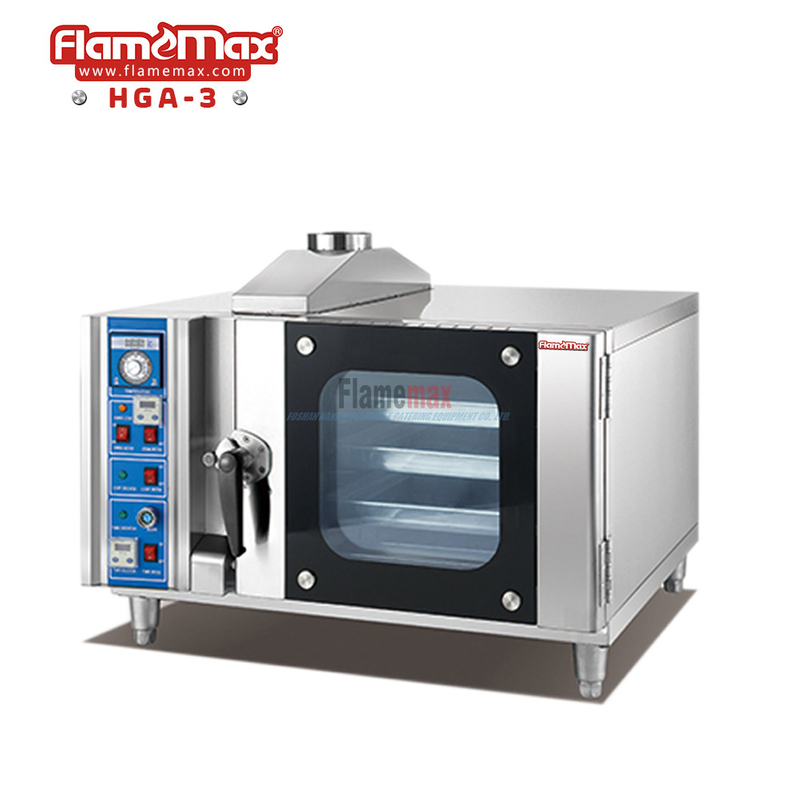

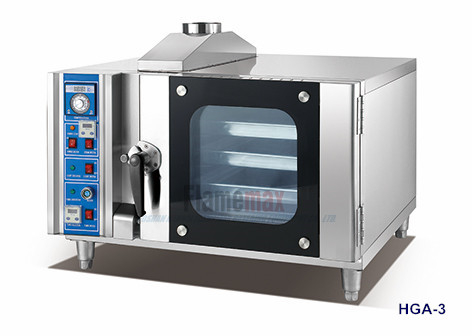

Item Number : HGA-3
Name : Gas Convection Oven(3-Pan)
Dimension : 930x890x670+130mm
Heat Flux : 5Kw/h
Power : 0.4Kw 220v/380v/50Hz
Inner Size : 500x700x340mm
Tray rack size: 465x600x337/90mm
Temperature Range : 0-400 Centigrade
Pan : Five
Material : Stainless Steel #430
Oven, Convection oven, electric convection oven, gas convection, oven, baking oven, commercial oven, electric oven, gas oven
1. Baking with air circulation.
2. Adjustable temperature to 350 centigrade.
3. Equally baked products by means of uniform heat distribution.
4. Heat resistant glass door.
5. Internal lighting.
6. Operating with monophase or triphase electricity(optional).
7. Button lock system.
8. Warning signal after baking completely.
9. Electronic thermostat.
10. Safety thermostat.
11. Use 40*60cm tray(no trays included)
Details of gas convection oven:
Model: HGA-5
Name: Gas convection oven(5-pan)
Dimension: 930x890x830+130mm
Power: 0.4kw 220v/380v/50Hz
Heat Flux: 10kw/h
Inner size: 500x700x500mm
Model: HGA-12
Name: Gas convection oven(12-pan)
Dimension: 930x890x1550+130mm
Power: 0.8kw 220v/380v/50Hz
Heat Flux: 16kw/h
Inner size: 500x700x12250mm
Description of oven:
1. Perspective window, doubel temperature controller, timer function, high efficiency heating element.
2. They adopt advanced electric ignition and monitoring system so that safe and reliable operation can be easily obtained.
3. Each layer of the oven can be used to bake various foods simulta-neously because each layer can be operated independently.
4. This kind of products are of quick temperature-raising, being ecomomical when using gas.
5. Provide you with the choice of more than 35 models.
6. Electric models and gas models are available.
Model: HGO-20
Name: Gas baking oven(1-deck 2-tray)
Dimension: 1380x900x600mm
Power: 0.1kw 220V/50Hz
Heat Flux: 12kw/h
Inner size: 880x710x210mm
Model: HGO-60
Name: Gas baking oven(3-deck 6-tray)
Dimension: 1380x900x1510+120mm
Power: 0.3kw 220V/50Hz
Heat Flux: 36kw/h
Inner size: 880x710x210mm
Model: HEO-30-2
Name: Electric baking oven(2-deck 6-tray)
Dimension: 1670x900x920+120mm
Power: 19.2kw 380V/50Hz
Inner size: 1300x690x200mm
Model: HEL-3B-2
Name: Electric leavening chamber(2-door 30-tray)
Dimension: 1100x760x1830mm
Power: 2.5+2.5kw 220V/50Hz
Model: HEO-89
Name: 3-deck electric oven(3-deck 3-tray)
Dimension: 850x700x1215mm
Power: 9.6kw380V/50Hz
Inner size: 620x540x200mm
Model: HEO-8C
Name: Electric oven(one deck)
Dimension: 750x630x540mm
Power: 4.6kw 2200V/50Hz
Inner size: 520x520x200mm
Model: HEO-10
Name: Electric oven
Dimension: 800x700x600mm
Power: 4.5kw 220V/50Hz
Inner size: 500x600x300mm
Model: HEJ-10-11
Name: Electric combi-oven
Dimension: 867x930x950mm
Power: 18kw 380V/50Hz
Inner size: 600x490x650mm
| Item No. | Description | product dimension(mm) | carton dimension(mm) | packing dimension(mm) | heat flux(kw/h) | power(kw) | voltage/ frequency (v/Hz) | inner size(mm) | volume (CBM) | net weight (KGS) | gross weight (KGS) |
| HGA-3 | gas convection oven (3-pan) | 930× 890× 670+130 | 900× 1350× 530 | 980× 1430× 610 | 5 | 0.4 | 220/380/50 | 500x700x340 | 0.86 | 70 | 80 |
| HEA-3 | electric convection oven (3-pan) | 930× 890× 670 | 900× 1350× 530 | 980× 1430× 610 | _ | 4.4 | 220/50 | 500x700x340 | 0.86 | 80 | 90 |
| HGA-5 | gas convection oven (5-pan) | 930× 890× 830+130 | 900× 1350× 780 | 980× 1430× 860 | 10 | 0.4 | 220/380/50 | 500x700x500 | 1.21 | 120 | 130 |
| HEA-5 | electric convection oven (5-pan) | 930x890x830 | 980x1000x870 | 980× 1430× 860 | _ | 7.4 | 380/50 | 500x700x500 | 1.21 | 110 | 120 |
| HGA-8 | gas convection oven (8-pan) | 930× 890× 1100+130 | 900× 1350× 1020 | 980× 1430× 1100 | 12 | 0.4 | 220/380/50 | 500x700x775 | 1.54 | 170 | 190 |
| HEA-8 | electric convection oven (8-pan) | 930× 890× 1100 | 900× 1350× 1020 | 980× 1430× 1100 | _ | 9.4 | 380/50 | 500x700x775 | 1.54 | 160 | 180 |
| HGA-12 | gas convection oven (12-pan) | 930× 890×1550
+130 | 900× 1350× 1300 | 980× 1430× 1380 | 16 | 0.8 | 220/380/50 | 500x700x1100 | 1.93 | 210 | 220 |
| HEA-12 | electric convection oven (12-pan) | 930× 890× 1550 | 900× 1350× 1300 | 980× 1430× 1380 | _ | 12.8 | 380/50 | 500x700x1225 | 1.93 | 220 | 230 |
