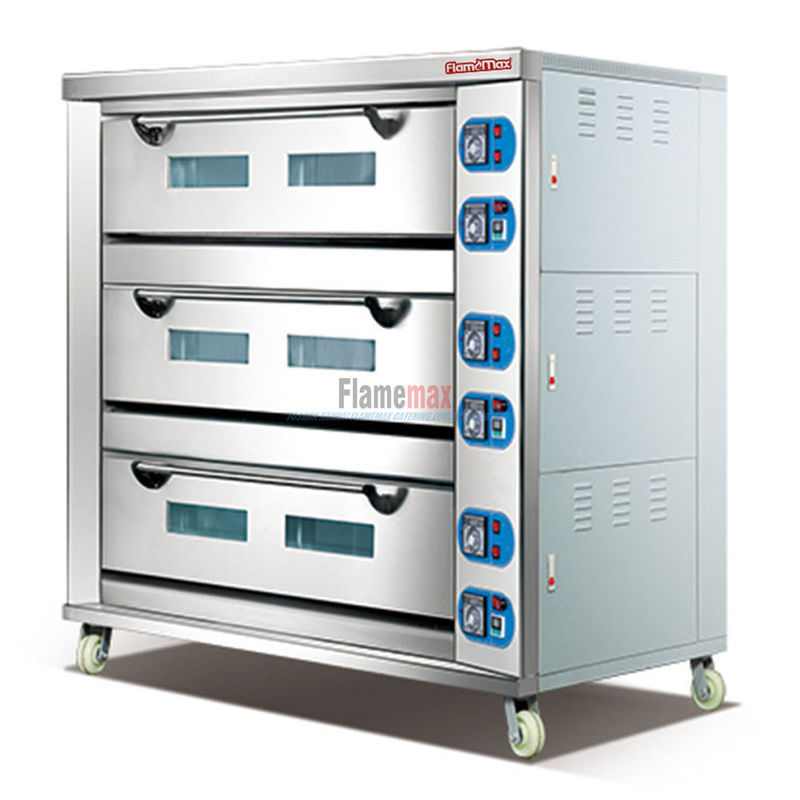

Item Number : HEO-30-3 Dimension : 1670x900x1300+120mm Voltage : 380V/50Hz Power : 2.8kw Temperature Range : 0-400 Centigrade Deck : Two Tray : Nine Material : Stainless Steel #430 Inner Size : 1300x690x200mm Baking oven, commercial oven, oven, electric oven, gas oven 1. Perspective window, doubel temperature controller, timer function, high efficiency heating element. 2. They adopt advanced electric ignition and monitoring system so that safe and reliable operation can be easily obtained. 3. Each layer of the oven can be used to bake various foods simulta-neously because each layer can be operated independently. 4. This kind of products are of quick temperature-raising, being ecomomical when using gas. 5. Provide you with the choice of more than 35 models. 6. Electric models and gas models are available. Model: HEO-30-2 Name: Electric baking oven(2-deck 6-tray) Dimension: 1670x900x920+120mm Power: 19.2kw 380V/50Hz Inner size: 1300x690x200mm Feature of HEO-30-2 electric baking oven: 1. Doubel temperature controller. 2. Time function. 3. Active gridiron and grill pan. 4. Internal lighting. 5. Temperature rises rapidly. 6. Can be customized with slate, ceramic stone, etc. Model: HEL-3B-2 Name: Electric leavening chamber(2-door 30-tray) Dimension: 1100x760x1830mm Power: 2.5+2.5kw 220V/50Hz Model: HEO-89 Name: 3-deck electric oven(3-deck 3-tray) Dimension: 850x700x1215mm Power: 9.6kw380V/50Hz Inner size: 620x540x200mm Model: HEO-8C Name: Electric oven(one deck) Dimension: 750x630x540mm Power: 4.6kw 2200V/50Hz Inner size: 520x520x200mm Model: HEO-10 Name: Electric oven Dimension: 800x700x600mm Power: 4.5kw 220V/50Hz Inner size: 500x600x300mm Model: HEJ-10-11 Name: Electric combi-oven Dimension: 867x930x950mm Power: 18kw 380V/50Hz Inner size: 600x490x650mm
Item Number : HEO-30-3 Dimension : 1670x900x1300+120mm Voltage : 380V/50Hz Power : 2.8kw Temperature Range : 0-400 Centigrade Deck : Two Tray : Nine Material : Stainless Steel #430 Inner Size : 1300x690x200mm Baking oven, commercial oven, oven, electric oven, gas oven 1. Perspective window, doubel temperature controller, timer function, high efficiency heating element. 2. They adopt advanced electric ignition and monitoring system so that safe and reliable operation can be easily obtained. 3. Each layer of the oven can be used to bake various foods simulta-neously because each layer can be operated independently. 4. This kind of products are of quick temperature-raising, being ecomomical when using gas. 5. Provide you with the choice of more than 35 models. 6. Electric models and gas models are available. Model: HEO-30-2 Name: Electric baking oven(2-deck 6-tray) Dimension: 1670x900x920+120mm Power: 19.2kw 380V/50Hz Inner size: 1300x690x200mm Feature of HEO-30-2 electric baking oven: 1. Doubel temperature controller. 2. Time function. 3. Active gridiron and grill pan. 4. Internal lighting. 5. Temperature rises rapidly. 6. Can be customized with slate, ceramic stone, etc. Model: HEL-3B-2 Name: Electric leavening chamber(2-door 30-tray) Dimension: 1100x760x1830mm Power: 2.5+2.5kw 220V/50Hz Model: HEO-89 Name: 3-deck electric oven(3-deck 3-tray) Dimension: 850x700x1215mm Power: 9.6kw380V/50Hz Inner size: 620x540x200mm Model: HEO-8C Name: Electric oven(one deck) Dimension: 750x630x540mm Power: 4.6kw 2200V/50Hz Inner size: 520x520x200mm Model: HEO-10 Name: Electric oven Dimension: 800x700x600mm Power: 4.5kw 220V/50Hz Inner size: 500x600x300mm Model: HEJ-10-11 Name: Electric combi-oven Dimension: 867x930x950mm Power: 18kw 380V/50Hz Inner size: 600x490x650mm
Item No.
Description
product dimension(mm)
carton dimension(mm)
packing dimension(mm)
heat flux(kw/h)
power(kw)
voltage/ frequency (v/Hz)
inner size(mm)
volume (CBM)
net weight (KGS)
gross weight (KGS)
HEO-20
electric baking oven(1-deck 2-tray)
1250× 900× 580
1300× 940× 600
1380× 1020× 680
_
6
380/50
880x690x200
0.96
84
95
HEO-30
electric baking oven(1-deck 3-tray)
1670× 900× 580
1700× 940× 600
1780× 1020× 680
_
9.6
380/50
1300x690x200
1.24
95
110
HEO-40
electric baking oven(2-deck 4-tray)
1250× 900× 920+120
1300× 940× 1050
1380× 1020× 1130
_
12
380/50
880x690x200
1.59
170
180
HEO-30-2
electric baking oven(2-deck 6-tray)
1670× 900× 920+120
1700× 940× 1450
1780× 1020× 1530
_
19.2
380/50
1300x690x200
2.78
190
210
HEO-60
electric baking oven(3-deck 6-tray)
1250× 900× 1300+120
1300× 940× 1430
1380× 1020× 1510
_
18
380/50
880x690x200
2.18
240
250
HEO-30-3
electric baking oven(3-deck 9-tray)
1670× 900× 1300+120
1700× 940× 1430
1780× 1020× 1510
_
28.8
380/50
1300x690x200
2.74
280
290
HGO-10B
gas baking oven(1-deck 1-tray)
990× 650× 600
1070× 750× 650
1150× 830× 730
9
0.1
220/50
620x220x490
0.7
50
60
HGO-20
gas baking oven(1-deck 2-tray)
1380× 900× 600
1420× 940× 620
1500× 1020× 700
12
0.1
220/50
880x710x210
1.07
90
100
HGO-30
gas baking oven(1-deck 3-tray)
1800× 900× 600
1840× 940× 600
1920× 1020× 680
21
0.1
220/50
1300x710x210
1.33
100
115
HGO-40
gas baking oven(2-deck 4-tray)
1380× 900× 1040+120
1420× 940× 1170
1500× 1020× 1250
24
0.2
220/50
880x710x210
1.91
250
260
HGO-30-2
gas baking oven(2-deck 6-tray)
1800× 900× 1040+120
1840× 940× 1170
1920× 1020× 1250
36
0.2
220/50
1300x710x210
2.45
260
270
HGO-60
gas baking oven(3-deck 6-tray)
1380× 900× 1510+120
1420× 940× 1640
1500× 1020× 1720
36
0.3
220/50
880x710x210
2.63
270
290
HGO-30-3
gas baking oven(3-deck 9-tray)
1800× 900× 1510+120
1840× 940× 1640
1920× 1020× 1720
48
0.3
220/50
1300x710x210
3.37
330
360
Item No.
Description
product dimension(mm)
carton dimension(mm)
packing dimension(mm)
heat flux(kw/h)
power(kw)
voltage/ frequency (v/Hz)
inner size(mm)
volume (CBM)
net weight (KGS)
gross weight (KGS)
HEO-20
electric baking oven(1-deck 2-tray)
1250× 900× 580
1300× 940× 600
1380× 1020× 680
_
6
380/50
880x690x200
0.96
84
95
HEO-30
electric baking oven(1-deck 3-tray)
1670× 900× 580
1700× 940× 600
1780× 1020× 680
_
9.6
380/50
1300x690x200
1.24
95
110
HEO-40
electric baking oven(2-deck 4-tray)
1250× 900× 920+120
1300× 940× 1050
1380× 1020× 1130
_
12
380/50
880x690x200
1.59
170
180
HEO-30-2
electric baking oven(2-deck 6-tray)
1670× 900× 920+120
1700× 940× 1450
1780× 1020× 1530
_
19.2
380/50
1300x690x200
2.78
190
210
HEO-60
electric baking oven(3-deck 6-tray)
1250× 900× 1300+120
1300× 940× 1430
1380× 1020× 1510
_
18
380/50
880x690x200
2.18
240
250
HEO-30-3
electric baking oven(3-deck 9-tray)
1670× 900× 1300+120
1700× 940× 1430
1780× 1020× 1510
_
28.8
380/50
1300x690x200
2.74
280
290
HGO-10B
gas baking oven(1-deck 1-tray)
990× 650× 600
1070× 750× 650
1150× 830× 730
9
0.1
220/50
620x220x490
0.7
50
60
HGO-20
gas baking oven(1-deck 2-tray)
1380× 900× 600
1420× 940× 620
1500× 1020× 700
12
0.1
220/50
880x710x210
1.07
90
100
HGO-30
gas baking oven(1-deck 3-tray)
1800× 900× 600
1840× 940× 600
1920× 1020× 680
21
0.1
220/50
1300x710x210
1.33
100
115
HGO-40
gas baking oven(2-deck 4-tray)
1380× 900× 1040+120
1420× 940× 1170
1500× 1020× 1250
24
0.2
220/50
880x710x210
1.91
250
260
HGO-30-2
gas baking oven(2-deck 6-tray)
1800× 900× 1040+120
1840× 940× 1170
1920× 1020× 1250
36
0.2
220/50
1300x710x210
2.45
260
270
HGO-60
gas baking oven(3-deck 6-tray)
1380× 900× 1510+120
1420× 940× 1640
1500× 1020× 1720
36
0.3
220/50
880x710x210
2.63
270
290
HGO-30-3
gas baking oven(3-deck 9-tray)
1800× 900× 1510+120
1840× 940× 1640
1920× 1020× 1720
48
0.3
220/50
1300x710x210
3.37
330
360
