Item Number : HEO-10B Dimension : 850x540x600mm Voltage : 220V/50Hz Inner Size : 620x520x200mm Temperature Range : 50-300 Centigrade Deck : One Tray : One Oven, baking oven, commercial oven, ktichen equipment 1. Perspective window, doubel temperature controller, timer function, high efficiency heating element. 2. They adopt advanced electric ignition and monitoring system so that safe and reliable operation can be easily obtained. 3. Each layer of the oven can be used to bake various foods simulta-neously because each layer can be operated independently. 4. This kind of products are of quick temperature-raising, being ecomomical when using gas. 5. Provide you with the choice of more than 35 models. 6. Electric models and gas models are available. Model: HEO-10B Name: 1-deck electric oven(1-deck 1-tray) Dimension: 850x540x600mm Power: 4.8kw 220V/50Hz Inner size: 620x520x200mm Model: HEO-8C Name: Electric oven(one deck) Dimension: 750x630x540mm Power: 4.6kw 2200V/50Hz Inner size: 520x520x290mm Model: HEO-10 Name: Electric oven Dimension: 800x700x600mm Power: 4.5kw 220V/50Hz Inner size: 500x600x300mm Model: HEJ-10-11 Name: Electric combi-oven Dimension: 867x930x950mm Power: 18kw 380V/50Hz Inner size: 600x490x650mm
Item Number : HEO-10B Dimension : 850x540x600mm Voltage : 220V/50Hz Inner Size : 620x520x200mm Temperature Range : 50-300 Centigrade Deck : One Tray : One Oven, baking oven, commercial oven, ktichen equipment 1. Perspective window, doubel temperature controller, timer function, high efficiency heating element. 2. They adopt advanced electric ignition and monitoring system so that safe and reliable operation can be easily obtained. 3. Each layer of the oven can be used to bake various foods simulta-neously because each layer can be operated independently. 4. This kind of products are of quick temperature-raising, being ecomomical when using gas. 5. Provide you with the choice of more than 35 models. 6. Electric models and gas models are available. Model: HEO-10B Name: 1-deck electric oven(1-deck 1-tray) Dimension: 850x540x600mm Power: 4.8kw 220V/50Hz Inner size: 620x520x200mm Model: HEO-8C Name: Electric oven(one deck) Dimension: 750x630x540mm Power: 4.6kw 2200V/50Hz Inner size: 520x520x290mm Model: HEO-10 Name: Electric oven Dimension: 800x700x600mm Power: 4.5kw 220V/50Hz Inner size: 500x600x300mm Model: HEJ-10-11 Name: Electric combi-oven Dimension: 867x930x950mm Power: 18kw 380V/50Hz Inner size: 600x490x650mm
Item No.
Description
product dimension(mm)
carton dimension(mm)
packing dimension(mm)
heat flux(kw/h)
power(kw)
voltage/ frequency (v/Hz)
inner size(mm)
volume (CBM)
net weight (KGS)
gross weight (KGS)
HGO-10
gas oven
800× 700× 600
840× 840× 610
940× 820× 690
5
_
_
500x600x300
0.53
40
46
HEO-10
electric oven
800× 700× 600
840× 840× 610
940× 820× 690
_
4.5
220/50
500x600x300
0.53
40
46
HEO-5A
electric oven
640× 450× 440
660× 480× 450
740× 590× 530
_
3.2
220/50
450x360x190
0.23
30
38
HEO-6B
electric oven
750× 540× 440
790x580x480
870x660x560
_
3.2
220/50
520x430x190
0.32
38
45

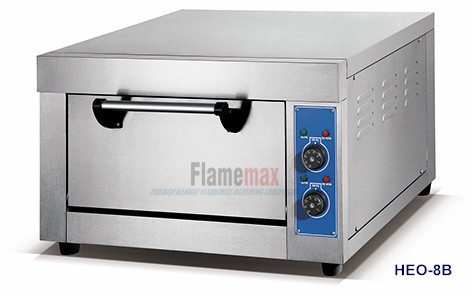

HEO-8B
electric oven
750× 600× 440
790× 670× 490
870× 750× 570
_
220/50
520x520x190
0.37
40
46
HEO-8C
electric oven
750× 630× 540
800× 680× 550
880× 760× 630
_
220/50
520x520x290
0.42
46
52
HEO-10B
electric oven
850× 540× 600
900× 750× 530
980× 830× 610
_
4.8
220/50
620x520x200
0.5
40
49
HEO-87
2-deck electric oven(2-deck 2-tray)
750× 700× 960
790x740x1000
870x820x1080
_
6.4
220/50
620x540x200
0.77
70
80
HEO-88
2-deck electric oven(2-deck 2-tray)
850× 700× 1100
900× 750× 1150
980× 830× 1230
_
6.4
220/50
620x540x200
1.00
100
110
HEO-89
3-deck electric oven(3-deck 3-tray)
850× 700× 1215
900× 750× 1260
980× 830× 1340
_
9.6
220/50
620x540x200
1.09
120
130
Item No.
Description
product dimension(mm)
carton dimension(mm)
packing dimension(mm)
heat flux(kw/h)
power(kw)
voltage/ frequency (v/Hz)
inner size(mm)
volume (CBM)
net weight (KGS)
gross weight (KGS)
HGO-10
gas oven
800× 700× 600
840× 840× 610
940× 820× 690
5
_
_
500x600x300
0.53
40
46
HEO-10
electric oven
800× 700× 600
840× 840× 610
940× 820× 690
_
4.5
220/50
500x600x300
0.53
40
46
HEO-5A
electric oven
640× 450× 440
660× 480× 450
740× 590× 530
_
3.2
220/50
450x360x190
0.23
30
38
HEO-6B
electric oven
750× 540× 440
790x580x480
870x660x560
_
3.2
220/50
520x430x190
0.32
38
45
HEO-8B
electric oven
750× 600× 440
790× 670× 490
870× 750× 570
_
220/50
520x520x190
0.37
40
46
HEO-8C
electric oven
750× 630× 540
800× 680× 550
880× 760× 630
_
220/50
520x520x290
0.42
46
52
HEO-10B
electric oven
850× 540× 600
900× 750× 530
980× 830× 610
_
4.8
220/50
620x520x200
0.5
40
49
HEO-87
2-deck electric oven(2-deck 2-tray)
750× 700× 960
790x740x1000
870x820x1080
_
6.4
220/50
620x540x200
0.77
70
80
HEO-88
2-deck electric oven(2-deck 2-tray)
850× 700× 1100
900× 750× 1150
980× 830× 1230
_
6.4
220/50
620x540x200
1.00
100
110
HEO-89
3-deck electric oven(3-deck 3-tray)
850× 700× 1215
900× 750× 1260
980× 830× 1340
_
9.6
220/50
620x540x200
1.09
120
130
